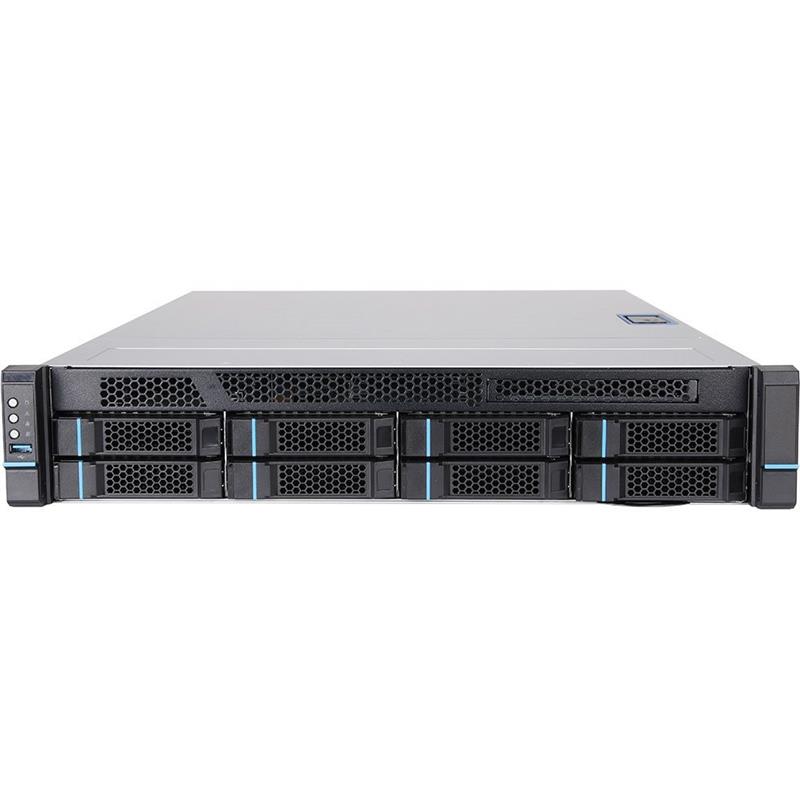

TERRA SERVER 3230 G6 E-2488/64/2x1.9/C
Xeon E-2488 (24 MB cache, 8x 3.20 GHz) | Chenbro RM23808 2HE RACK, 800W PSU redundant | Incl. Rails | 2x 32 GB DDR5 UB ECC RAM, 2x 1.9 TB SATA SSD (RAID 1) | Broadcom MegaRAID 9560-8i with 4 GB cache | (RAID 0/1/10/5/50/6/60) | (!) w/o DVD burner | 2x 10 GbE LAN, 1x Mgmt LAN, TPM | Grafic onboard (VGA) | (!) w/o keyboard and mouse | (!) w/o operating system

Specificaties
| Processor |
L3 cache | 24 MB |
Processorfamilie | 1-CPU / Xeon UP |
Aantal processorkernen | 8-Core |
Frequentie van processor | 3.2 GHz |
Aantal processoren | 1 |
Max. aantal SMP-processoren | 1 |
Processor socket | LGA1700 |
Chipset moederbord | Intel C266 |
| Algemeen |
Processormodel | Intel Xeon E-2488 / 3.2 GHz |
Besturingssysteem | Geen operating system |
| Prestatie |
Markt positionering | SERVER 3000 |
Compatibele besturingssystemen | Windows Server 2022 Windows Server 2019 |
Aantal kanalen | 8 |
| Geheugen |
Intern geheugen | 64 GB |
Maximum intern geheugen | 128 GB |
Intern geheugentype | DDR5 ECC UB RAM |
Geheugenslots | 4x DDR5 PC4400, UB ECC |
Geheugen kanaal | Dual-Channel-Memory-Architecture |
| Opslagmedia |
Soort optische drive | Optional |
Soorten RAID | RAID 1 |
Aantal storage drives geïnstalleerd | 2 stuk(s) |
Interne drive bays | 8x 3.5/2.5 |
Totale opslagcapaciteit | 3840 GB |
SSD interfaces | SATA 6Gb/s |
HDD capaciteit | 2x 1.9 TB SSD |
Opslagmedia-type | SSD SATA |
| Design |
Certificering | CE, productie volgens ISO9001 in Duitsland |
Rack-montage | 2 |
Type behuizing | Rack |
| Energie |
Stroombron | Power supply - redundant |
Redundante voeding | Ja |
Maximaal ingangsvermogen | 800 W |
Aantal voedingen | 2 stuk(s) |
AC-adapter ingangsspanning | 100-240 V / 50-60 Hz |
| Muis |
Inclusief muis | Optional |
| Toetsenbord |
Toetsenbord formaat | Optional |
| Netwerk |
Ethernet LAN | geïntegreerd |
LAN controller | Intel X710-AT2 |
Bekabelingstechnologie | 2x 10 GbE (RJ45) |
| Overige specificaties |
Aantal drive bays | Slot 1: PCIe 4.0 x8 @ x4 Slot 2: PCIe 4.0 x8 @ x4 Slot 3: PCIe 5.0 x8 @ x8 Slot 4: PCIe 5.0 x16 @ x16, automatic switch to PCIe 5.0 x16 @ x8 if slot 3 is occupied |
Interne schijfposities | 1x Slim 5.25 |
Interface | 1x VGA 2x LAN (RJ-45) 1x Mgmt LAN 5x USB 3.2 Gen2 (1x internal) 2x USB 3.2 Gen1 (2x front) 2x USB 2.0 option: 1x serieal |
Merk moederbord | Asus P13R-E/10G-2T |
Beheer op afstand | Ja |
Harde schijf-controller | Broadcom MegaRAID 9560-8i |
| Technische details |
Land | Internationaal |
Optionele on-site service | 24h On-Site-Service + DMR 24h On-Site-Service + DMR + Premium |
| Gewicht en omvang |
Hoogte | 8.7 cm |
Breedte | 43.8 cm |
Diepte | 66 cm |
| Koeling |
Type koeling | Actief |
| Grafisch |
Aantal displayports grafische adapter | VGA |
Maximum geheugen grafische adapter | 64 MB |
Grafische adapter | Aspeed AST2600 |
| Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | 10 °C - 35 °C (aanbeveling: 20 °C - 22 °C) |
Aanbevolen relatieve luchtvochtigheid bij gebruik | 10-75% (niet condenserend) |
